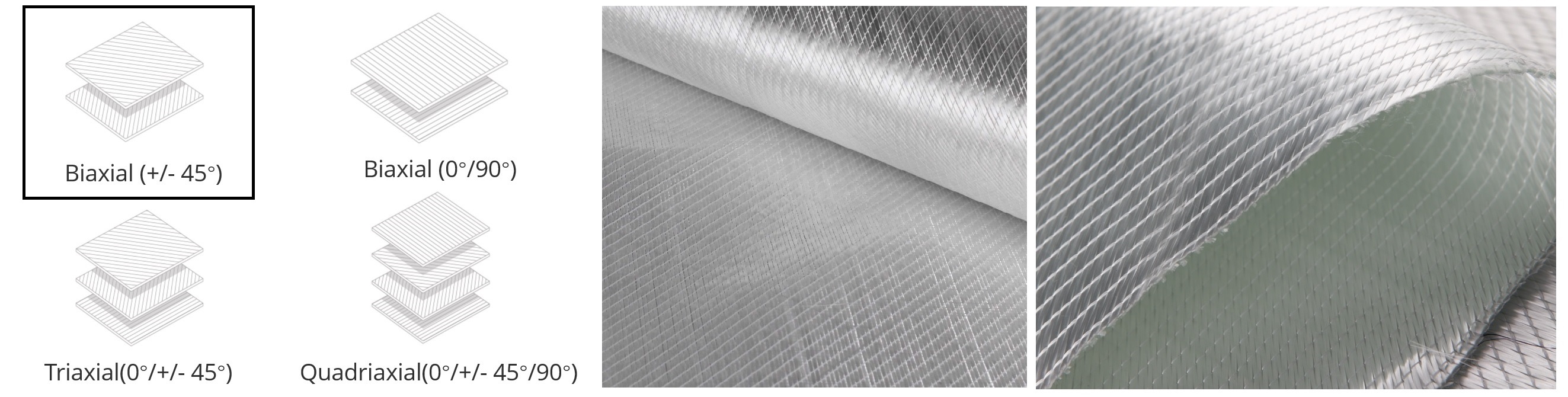

BIAXIAL FABRIC (+45°/-45°)

PRODUCT DESCRIPTION

This product is a stitch-bonded composite reinforcement made from continuous roving fibers oriented in the +45° and -45° directions, which are integrated into a single fabric. This biaxial fabric structure ensures that the material delivers excellent strength, flexibility, and impact resistance, making it particularly suitable for demanding applications where durability and performance are critical.

The fabric's unique orientation of continuous fibers in both the +45° and -45° directions provides a balanced load distribution, which enhances its mechanical properties, particularly in applications that experience multi-directional stresses. This design ensures that the fabric is not only strong but also capable of maintaining its integrity under various forms of mechanical load, such as bending, torsion, and tension.

PRODUCT FEATURES

1. No any Binder, good compatible with Multi-Resin;

2. Optimal mechanical performance;

3. Easy workability and low cost.

PRODUCT SPECIFICATION

Product Code	Overall Density（g/m2）	+45°Roving Density （g/m2）	-45°Roving Density （g/m2）	Chop Density（g/m2）	Polyester Yarn Density（g/m2）
EKBX160	172	80	80	/	6
EKBX240	233	106	106	/	6
EKBX300	306.7	150.33	150.33	/	6
EKBX400	407	200.5	200.5	/	6
EKBX450	457	225.5	225.5	/	6
EKBX600	607.2	300.6	300.6	/	6
EKBX800	807.6	400.8	400.8	/	6
EKBX1200	1208.6	601.3	601.3	/	6
EKBXM400/225	632	200.5	200.5	225	6
EKBXM600/225	832.2	300.6	300.6	225	6
EKBXM800/450	1257.6	400.8	400.8	450	6
EKBXM1208	682	200.5	200.5	275	6
EKBXM1308	732	225.5	225.5	275	6
EKBXM1708	882.2	300.6	300.6	275	6
EKBXM2408	1082.6	400.8	400.8	275	6

Remarks:

- Customized specifications orders are also acceptable.

- Standard width: 10000-2600mm (regular type: 1200mm, 1250mm)

PRODUCT PACKAGE

- Standard Roll weight: 55 or 60kg;

- Packaging: Each roll is wound on paper tube (3”Dia.) with plastic film and packed in individual cardboard box, 12/16 cartons per pallet.

FAQ

Who you are?

A: We are a manufacturing enterprise based in Qingdao specializing in composite material fabric products. Initially, we used machinery to process fiberglass into products supplied to clients worldwide. After eight years of dedicated effort, we have continuously improved our supply chain system and accumulated expertise in the composite materials industry. Now we offer clients a more comprehensive range of fiberglass and carbon fiber products.

Can you provide OEM or ODM service?

A: Yes, in addition to providing standard composite material products, we also accept customized parameter order and packaging/visual design to meet clients' complete procurement needs.

Do you provide samples?

A: If you require samples from our stock, we can provide them free of charge, while the freight cost will be your responsibility. For custom sizes, a sample production fee will apply; however, this fee is refundable upon placing an order.

What is the minimum order quantity?

A: Usually 1000KGS.

How long does it take to deliver?

A: Shipping 15-20 days after receipt of deposit.

What is your term of payment?

A: For LCL, 100% in advance;

For FCL or payment >=USD10000, 30% TT in advance, balance before shipping.

How can we guarantee quality?

A: Always a pre-production sample before mass production;
Always final Inspection before shipment;

Package & Shipping

A: Normal package: carton (Included in the unite price);

Special Package: need to charge according the purchaser requirement;

Shipping suggestion: purchaser’s nominated Freight forwarding.
