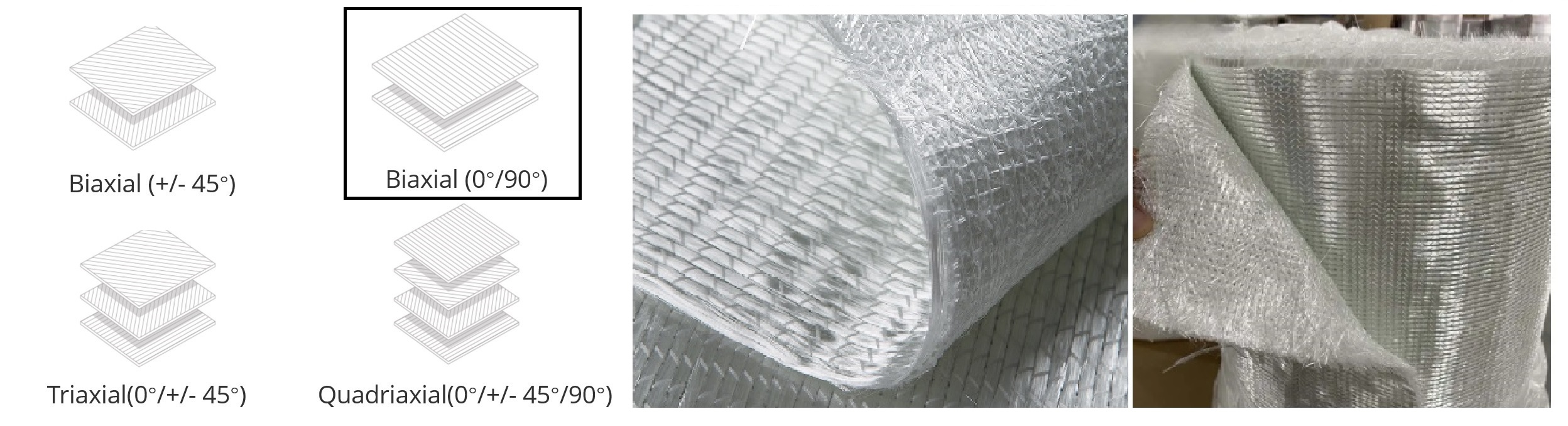

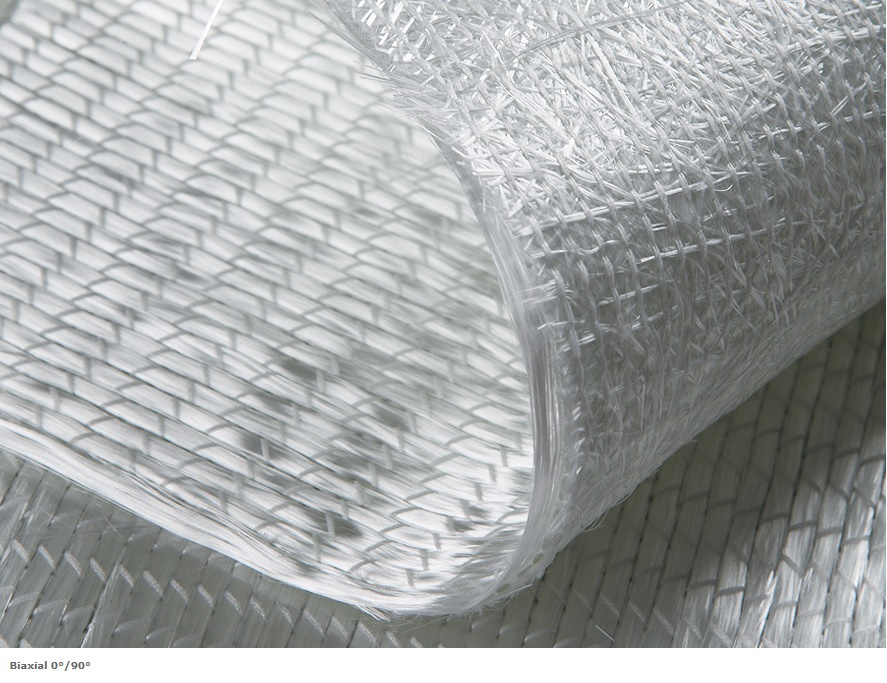

BIAXIAL FABRIC (0°/90°)
PRODUCT DESCRIPTION
This biaxial fabric is engineered with continuous roving oriented in both the 0° and 90° directions, providing enhanced strength and durability. The weight of each layer can be customized based on specific requirements, with options to incorporate a chopped strand layer (ranging from 50g/m² to 600g/m²) or non-woven fabrics (from 15g/m² to 100g/m²). Polyester stitching yarn is used to bind the layers together, and the fabric's area weight can range from 300g/m² to 1700g/m², with widths available from 5 inches to 120 inches.
This versatile fabric is compatible with a range of resins, including polyester, vinylester, epoxy, and phenolic resins, making it suitable for a variety of applications. It is primarily used in industries such as wind energy, sports, boat building, automotive, and transportation. The fabric's stitch-bonded construction, which combines continuous roving into a single composite reinforcement, can be produced with or without a mat layer. It is ideal for manufacturing components such as wind turbine blades, marine panels, snowboards, and truck or trailer panels.
PRODUCT FEATURES
1. No any Binder, good compatible with Multi-Resin;
2. Optimal mechanical performance;
3. Easy workability and low cost.
PRODUCT SPECIFICATION
|
Product Code |
Overall Density （g/m2） |
0°Roving Density （g/m2） |
90°Roving Density （g/m2） |
Chop Density （g/m2） |
Polyester Yarn Density （g/m2） |
|
EKLT400 |
409.5 |
202 |
198 |
/ |
9.5 |
|
EKLT600 |
609.5 |
330 |
270 |
/ |
9.5 |
|
EKLT800 |
809.5 |
412.5 |
387.5 |
/ |
9.5 |
|
EKLT1200 |
1209.5 |
605 |
595 |
/ |
9.5 |
|
EKLTM400/200 |
609.5 |
202 |
198 |
200 |
9.5 |
|
EKLTM600/300 |
909.5 |
330 |
270 |
300 |
9.5 |
|
EKLTM600/450 |
1059.5 |
330 |
270 |
450 |
9.5 |
|
EKLTM800/250 |
1059.5 |
412.5 |
387.5 |
250 |
9.5 |
|
EKLTM800/300 |
1109.5 |
412.5 |
387.5 |
300 |
9.5 |
|
EKLTM800/450 |
1259.5 |
412.5 |
387.5 |
450 |
9.5 |
|
EKLTM1608 |
835.5 |
275 |
276 |
275 |
9.5 |
|
EKLTM1808 |
894.5 |
330 |
280 |
275 |
9.5 |
|
EKLTM2408 |
1092 |
412.5 |
395 |
275 |
9.5 |
|
EKLTM2415 |
1274.7 |
412.5 |
395 |
457.7 |
9.5 |
|
EKLTM3208 |
1381.5 |
605 |
492 |
275 |
9.5 |
Remarks:
- Customized specifications orders are also acceptable.
- Standard width: 10000-2600mm (regular type: 1200mm, 1250mm)
PRODUCT PACKAGE
- Standard Roll weight: 55 or 60kg;
- Packaging: Each roll is wound on paper tube (3”Dia.) with plastic film and packed in individual cardboard box, 12/16 cartons per Pallet.
