CARBON FABRIC / CLOTH

ꄲNext： CARBON PREPREG UNIDIRECTIONAL FABRIC

PRODUCT DESCRIPTION

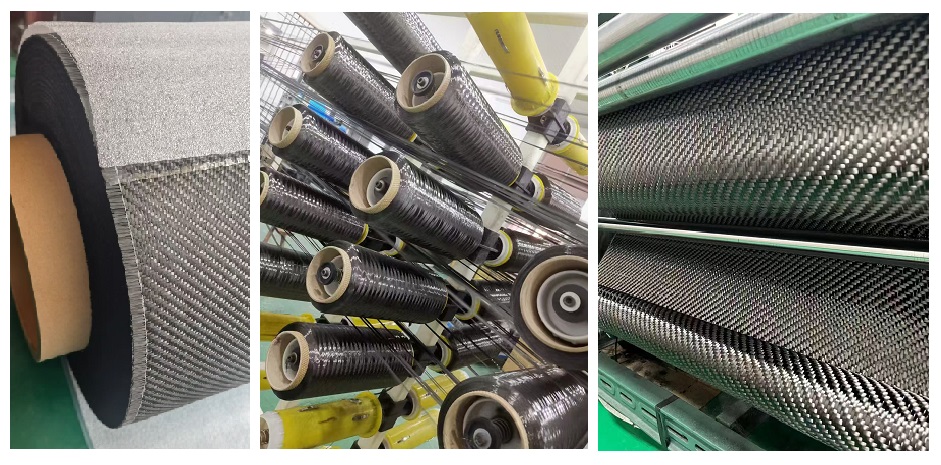

This carbon fiber fabric is crafted to offer superior strength-to-weight ratio, making it one of the most advanced materials for industrial use. The fiber types—1K, 3K, 6K, 12K, and 24K—ensure versatility, while the weave patterns (plain, twill, satin) cater to various performance and aesthetic requirements. Carbon fiber's inherent characteristics of high tensile strength, low weight, and minimal thickness contribute to the overall efficiency and durability of components.

PRODUCT APPLICATIONS

Aerospace and Aviation/ Automotive Industry / Sports Equipment / Marine Industry

PRODUCT SPECIFICATION

Product Code	Yarn		Weave Type	Fiber Count (10mm)		Width (mm)	Thickness (mm)	Weight (g/m2)
Product Code	Warp	Weft	Weave Type	Warp	Weft	Width (mm)	Thickness (mm)	Weight (g/m2)
H1K-CP120	1K	1K	Plain	9	9	100-3000	0.16	120
H1K-CT120	1K	1K	Twill	9	9	100-3000	0.16	120
H3K-CP200	3K	3K	Plain	5	5	100-3000	0.26	200
H3K-CT200	3K	3K	Twill	5	5	100-3000	0.26	200
H3K-CP240	3K	3K	Plain	6	6	100-3000	0.32	240
H3K-CT240	3K	3K	Twill	6	6	100-3000	0.32	240
H6K-CP320	6K	6K	Plain	4	4	100-3000	0.42	320
H6K-CT320	6K	6K	Twill	4	4	100-3000	0.42	320
H6K-CP360	6K	6K	Plain	4.5	4.5	100-3000	0.48	360
H6K-CT360	6K	6K	Twill	4.5	4.5	100-3000	0.48	360
H12K-CP400	12K	12K	Plain	2.5	2.5	100-3000	0.53	400
H12K-CT400	12K	12K	Twill	2.5	2.5	100-3000	0.53	400
H12K-CP480	12K	12K	Plain	3	3	100-3000	0.64	480
H12K-CT480	12K	12K	Twill	3	3	100-3000	0.64	480

PRODUCT PACKAGE

Plastic bag+carton on pallet

FAQ

Who you are?

A: We are a manufacturing enterprise based in Qingdao specializing in composite material fabric products. Initially, we used machinery to process fiberglass into products supplied to clients worldwide. After eight years of dedicated effort, we have continuously improved our supply chain system and accumulated expertise in the composite materials industry. Now we offer clients a more comprehensive range of fiberglass and carbon fiber products.

Can you provide OEM or ODM service?

A: Yes, in addition to providing standard composite material products, we also accept customized parameter order and packaging/visual design to meet clients' complete procurement needs.

Do you provide samples?

A: If you require samples from our stock, we can provide them free of charge, while the freight cost will be your responsibility. For custom sizes, a sample production fee will apply; however, this fee is refundable upon placing an order.

What is the minimum order quantity?

A: Usually 1000KGS.

How long does it take to deliver?

A: Shipping 15-20 days after receipt of deposit.

What is your term of payment?

A: For LCL, 100% in advance;

For FCL or payment >=USD10000, 30% TT in advance, balance before shipping.

How can we guarantee quality?

A: Always a pre-production sample before mass production;
Always final Inspection before shipment;

Package & Shipping

A: Normal package: carton (Included in the unite price);

Special Package: need to charge according the purchaser requirement;

Shipping suggestion: purchaser’s nominated Freight forwarding.
