UNIDIRECTIONAL FABRICS

PRODUCT DESCRIPTION

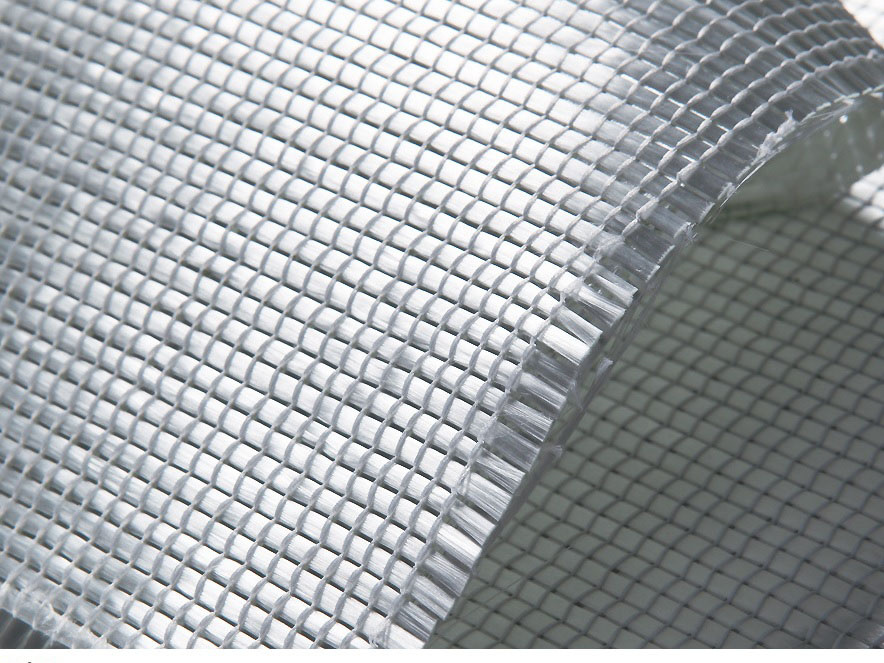

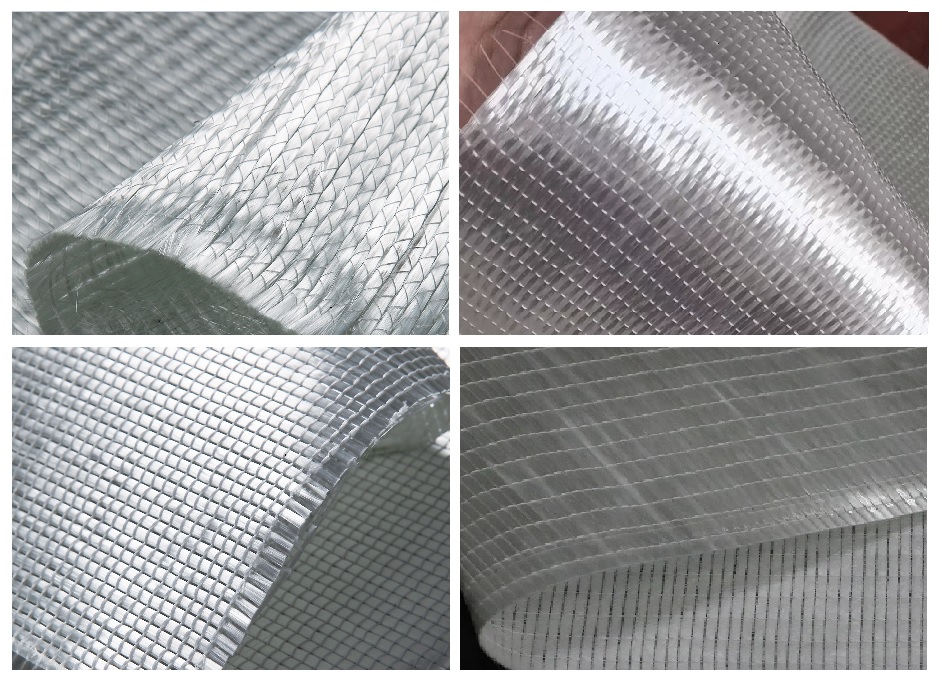

Unidirectional Fabrics are advanced stitch-bonded composite reinforcements made from continuous roving fibers oriented in a single direction, either 0° or 90°. This design provides superior strength and stiffness along the fiber direction, making it ideal for applications where high mechanical performance is required along a specific axis.

The unidirectional fabric structure ensures that the material can effectively handle high loads in the fiber orientation, offering excellent tensile strength and durability. This makes it perfect for reinforcing parts that undergo significant stress in one direction, such as beams, panels, and structural elements in aerospace, automotive, marine, and industrial applications.

PRODUCT FEATURES

1. No any Binder, good compatible with Multi-Resin;

2. Optimal mechanical performance;

3. Easy workability and low cost.

PRODUCT SPECIFICATION

Product Code	Overall Density （g/m2）	+0°Roving Density （g/m2）	90°Roving Density （g/m2）	Chop Density （g/m2）	Polyester Yarn Density （g/m2）
EKUDL300	312	261	39	/	12
EKUDL400	412	355	45	/	12
EKUDL460	469.5	413	47		9.5
EKUDL600A	612	533	67	/	12
EKUDL600	612	480	120	/	12
EKUDL800	812	710	90	/	12
EKUDL950	956	866	84	/	6
EKUDL1000	1022	710	/	300	12
EKUDL1200	1195	1134	55	/	6
EKUDT125	126	/	120	/	6
EKUDT300	309.5	/	300	/	9.5
EKUDT500	509.5	/	250	/	9.5
EKUDT600	609.5	/	600	/	9.5
EKUDTM225/225	459.5	/	225	225	9.5
EKUDTM300/300	609.5	/	300	300	9.5
EKUDTM600/300	809.5	/	500	300	9.5
EKUDTC600/300	909.5	/	600	CFM300	9.5

Remarks:

- Customized specifications orders are also acceptable.

- Standard width: 10000-2600mm (regular type: 1200mm, 1250mm)

PRODUCT PACKAGE

- Standard Roll weight: 55 or 60kg;

- Packaging: Each roll is wound on paper tube (3”Dia.) with plastic film and packed in individual cardboard box, 12/16 cartons per pallet.

FAQ

Who you are?

A: We are a manufacturing enterprise based in Qingdao specializing in composite material fabric products. Initially, we used machinery to process fiberglass into products supplied to clients worldwide. After eight years of dedicated effort, we have continuously improved our supply chain system and accumulated expertise in the composite materials industry. Now we offer clients a more comprehensive range of fiberglass and carbon fiber products.

Can you provide OEM or ODM service?

A: Yes, in addition to providing standard composite material products, we also accept customized parameter order and packaging/visual design to meet clients' complete procurement needs.

Do you provide samples?

A: If you require samples from our stock, we can provide them free of charge, while the freight cost will be your responsibility. For custom sizes, a sample production fee will apply; however, this fee is refundable upon placing an order.

What is the minimum order quantity?

A: Usually 1000KGS.

How long does it take to deliver?

A: Shipping 15-20 days after receipt of deposit.

What is your term of payment?

A: For LCL, 100% in advance;

For FCL or payment >=USD10000, 30% TT in advance, balance before shipping.

How can we guarantee quality?

A: Always a pre-production sample before mass production;
Always final Inspection before shipment;

Package & Shipping

A: Normal package: carton (Included in the unite price);

Special Package: need to charge according the purchaser requirement;

Shipping suggestion: purchaser’s nominated Freight forwarding.
